AON5802BL

In Stock: 1,537

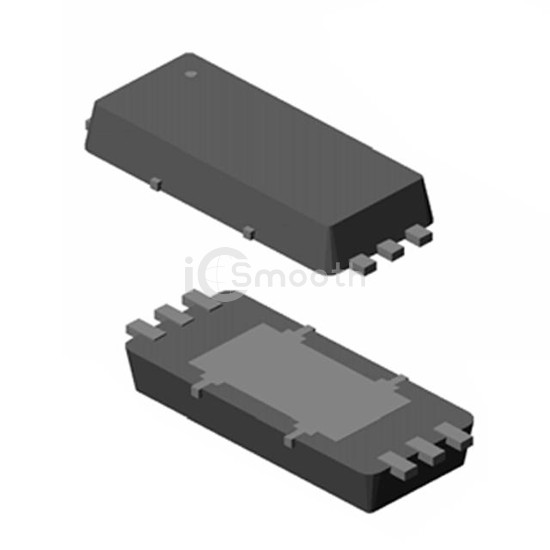

AON5802BL - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AON5802BL Alpha & Omega Semiconductor Inc.
AON5802BL

Alpha & Omega Semiconductor Inc.

MOSFET N-CH DUAL 30V 6DFN

AON5802BL is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH DUAL 30V 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.6W.

Request a Quote

In Stock: 1,537

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual) Common Drain
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C7.2A (Tc)
Rds On (Max) @ Id, Vgs19mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1150pF @ 15V
Power - Max1.6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device Package6-DFN-EP (2x5)
