Name: AON5802A
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON5802A
Availability: InStock

REF: AON5802A Alpha & Omega Semiconductor Inc.

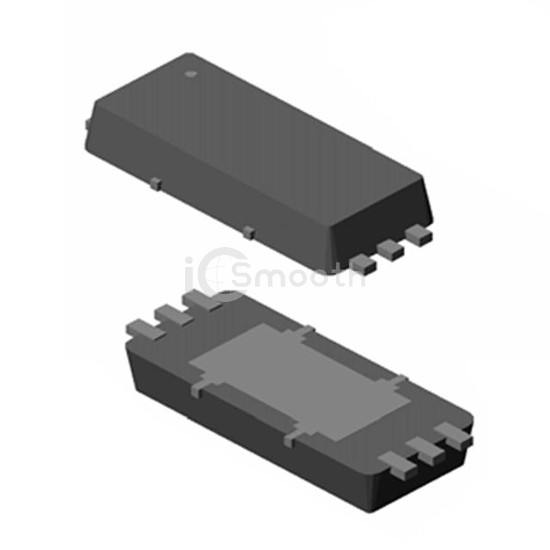

AON5802A

MOSFET 2N-CH 30V 7.2A 6-DFN

AON5802A is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 7.2A 6-DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WFDFN Exposed Pad, power - max 1.7W.

Datasheet Request a Quote

In Stock: 8,550

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	7.2A
Rds On (Max) @ Id, Vgs	20mOhm @ 7.2A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1115pF @ 15V
Power - Max	1.7W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WFDFN Exposed Pad
Supplier Device Package	6-DFN-EP (2x5)
