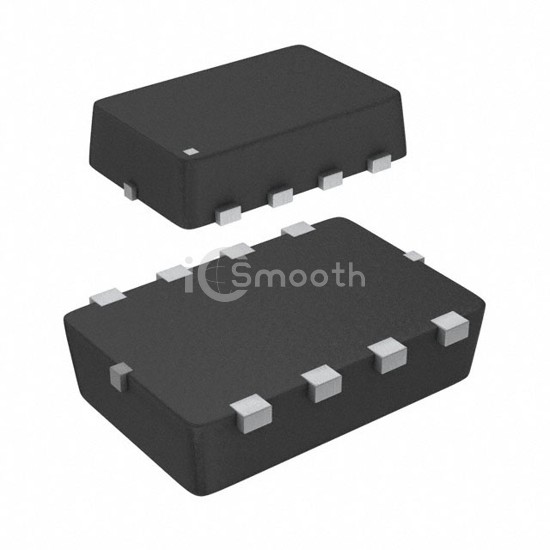

Name: AON4605
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON4605
Availability: InStock

REF: AON4605 Alpha & Omega Semiconductor Inc.

AON4605

MOSFET N/P-CH 30V 4.3A/3.4A 8DFN

AON4605 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N/P-CH 30V 4.3A/3.4A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SMD, Flat Lead, power - max 1.9W.

Datasheet Request a Quote

In Stock: 1,799

Specifications

14 parameters

Product Status	Obsolete
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	4.3A, 3.4A
Rds On (Max) @ Id, Vgs	50mOhm @ 4.3A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	210pF @ 15V
Power - Max	1.9W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-SMD, Flat Lead
Supplier Device Package	8-DFN (3x2)
