AON2809

In Stock: 7,371

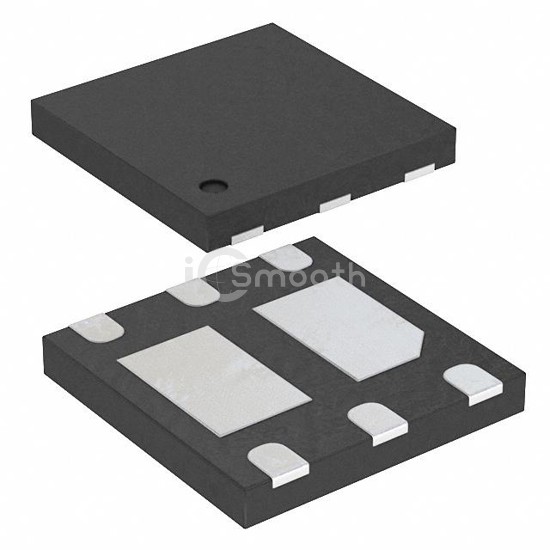

AON2809 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AON2809 Alpha & Omega Semiconductor Inc.
AON2809

Alpha & Omega Semiconductor Inc.

MOSFET 2P-CH 12V 2A 6DFN

AON2809 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2P-CH 12V 2A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 2.1W.

Datasheet Request a Quote

In Stock: 7,371

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)12V
Current - Continuous Drain (Id) @ 25°C2A
Rds On (Max) @ Id, Vgs68mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs4.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds415pF @ 6V
Power - Max2.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-DFN (2x2)
