Name: AON2801L
Brand: Alpha & Omega Semiconductor Inc.
SKU: AON2801L
Availability: InStock

REF: AON2801L Alpha & Omega Semiconductor Inc.

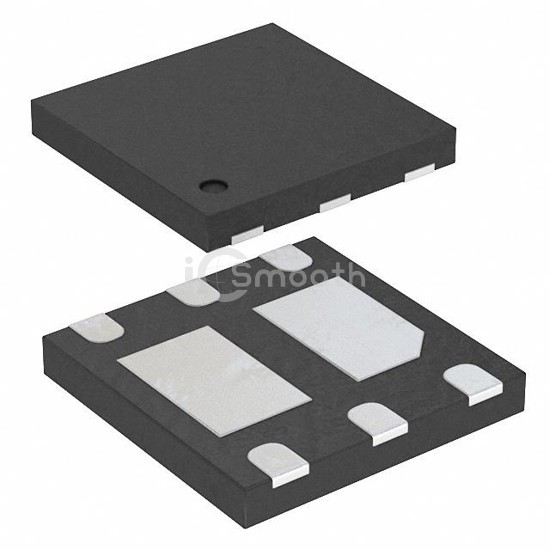

AON2801L

MOSFET P-CH DUAL DFN

AON2801L is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET P-CH DUAL DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 1.5W.

Datasheet Request a Quote

In Stock: 4,662

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Rds On (Max) @ Id, Vgs	120mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	700pF @ 10V
Power - Max	1.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-DFN (2x2)
