AON2801

In Stock: 7,320

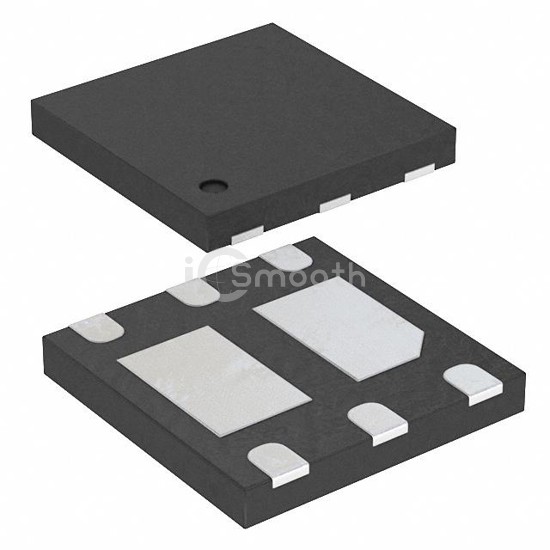

AON2801 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AON2801 Alpha & Omega Semiconductor Inc.
AON2801

Alpha & Omega Semiconductor Inc.

MOSFET 2P-CH 20V 3A DFN2X2-6L

AON2801 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2P-CH 20V 3A DFN2X2-6L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 1.5W.

Datasheet Request a Quote

In Stock: 7,320

Specifications

14 parameters
Product StatusActive
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C3A
Rds On (Max) @ Id, Vgs120mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds700pF @ 10V
Power - Max1.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-DFN (2x2)
