Name: AOC4810
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOC4810
Availability: InStock

REF: AOC4810 Alpha & Omega Semiconductor Inc.

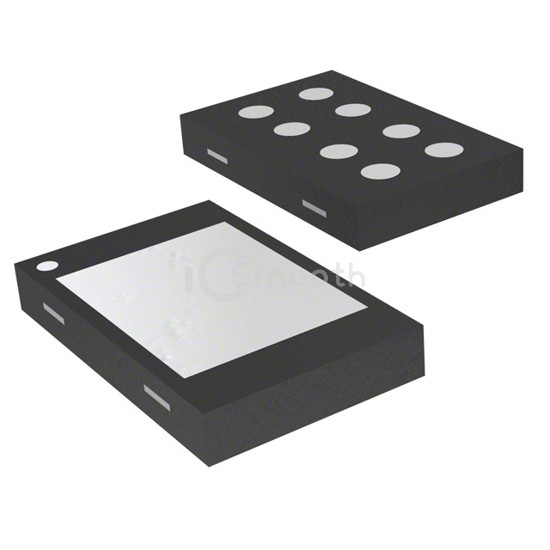

AOC4810

MOSFET 2N-CH 8-DFN

AOC4810 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 8-DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-XFLGA Exposed Pad, power - max 900mW.

Datasheet Request a Quote

In Stock: 3,801

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	-
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	-

Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1130pF @ 15V
Power - Max	900mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-XFLGA Exposed Pad
Supplier Device Package	8-AlphaDFN (3.2x2)
