Name: AOC2802_001
Brand: Alpha & Omega Semiconductor Inc.
SKU: AOC2802_001
Availability: InStock

REF: AOC2802_001 Alpha & Omega Semiconductor Inc.

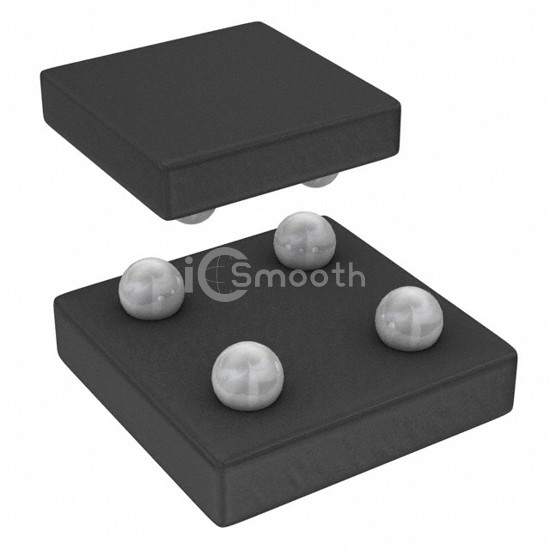

AOC2802_001

MOSFET 2N-CH 4WLCSP

AOC2802_001 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 4-UFBGA, WLCSP, power - max 1.3W.

Request a Quote

In Stock: 9,747

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	6A
Rds On (Max) @ Id, Vgs	35mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	10.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1200pF @ 10V
Power - Max	1.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-UFBGA, WLCSP
Supplier Device Package	4-WLCSP (1.57x1.57)
