AO7801

In Stock: 6,968

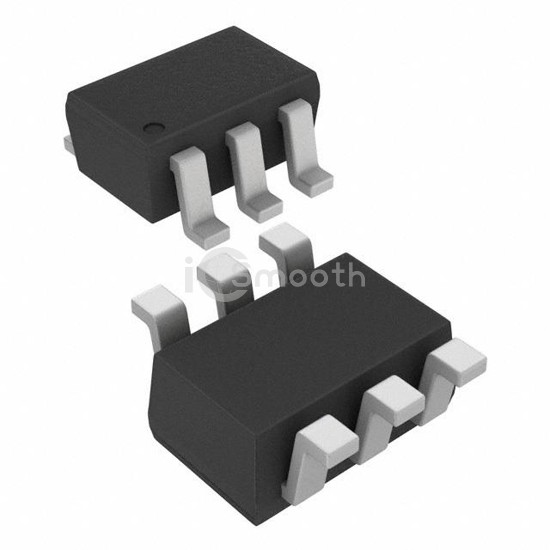

AO7801 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO7801 Alpha & Omega Semiconductor Inc.
AO7801

Alpha & Omega Semiconductor Inc.

MOSFET 2P-CH 20V SC70-6

AO7801 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2P-CH 20V SC70-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, power - max 300mW.

Datasheet Request a Quote

In Stock: 6,968

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs520mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds140pF @ 10V
Power - Max300mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device PackageSC-70-6
