AO6804A

In Stock: 1,855

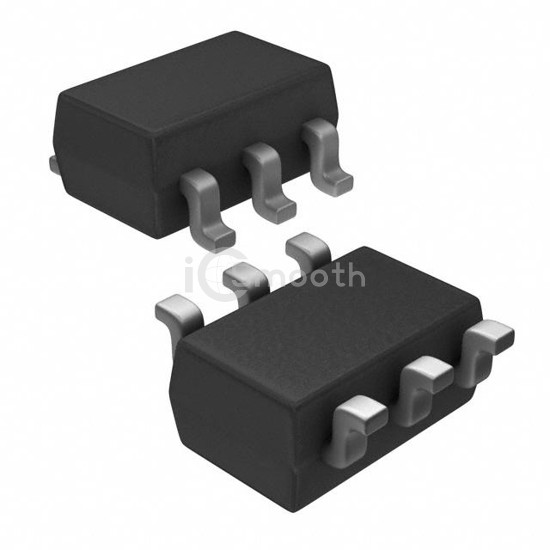

AO6804A - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO6804A Alpha & Omega Semiconductor Inc.
AO6804A

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 20V 5A 6TSOP

AO6804A is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 20V 5A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.3W.

Datasheet Request a Quote

In Stock: 1,855

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5A
Rds On (Max) @ Id, Vgs28mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds225pF @ 10V
Power - Max1.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
