AO6802

In Stock: 9,025

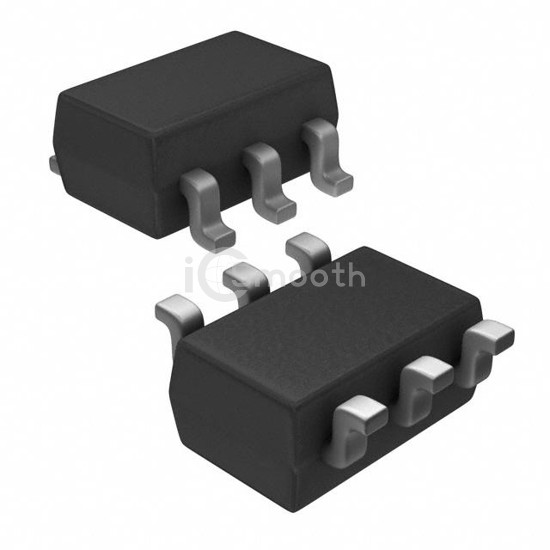

AO6802 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO6802 Alpha & Omega Semiconductor Inc.
AO6802

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 3.5A 6-TSOP

AO6802 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 3.5A 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.15W.

Datasheet Request a Quote

In Stock: 9,025

Specifications

14 parameters
Product StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C3.5A
Rds On (Max) @ Id, Vgs50mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds210pF @ 15V
Power - Max1.15W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
