AO6801A

In Stock: 4,606

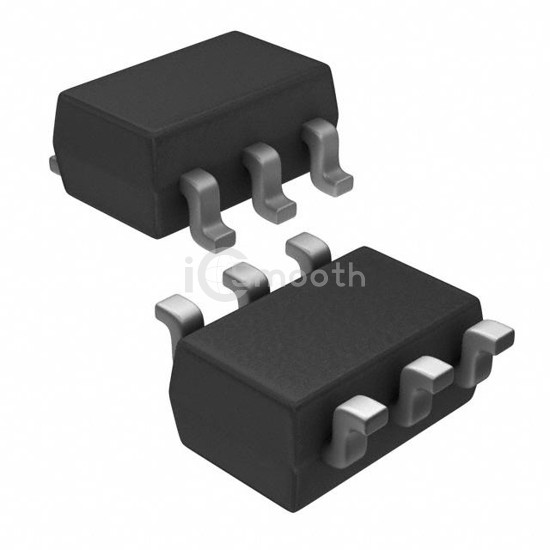

AO6801A - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO6801A Alpha & Omega Semiconductor Inc.
AO6801A

Alpha & Omega Semiconductor Inc.

MOSFET 2P-CH 30V 2.3A 6TSOP

AO6801A is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2P-CH 30V 2.3A 6TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.15W.

Datasheet Request a Quote

In Stock: 4,606

Specifications

14 parameters
Product StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C2.3A
Rds On (Max) @ Id, Vgs115mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds315pF @ 15V
Power - Max1.15W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
