AO6800

In Stock: 7,152

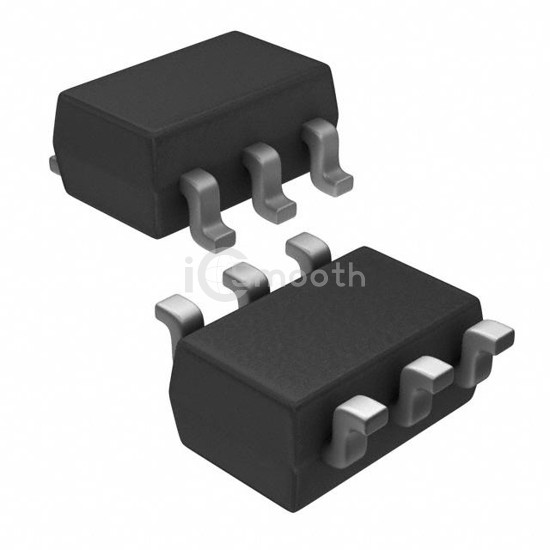

AO6800 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO6800 Alpha & Omega Semiconductor Inc.
AO6800

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 3.4A 6-TSOP

AO6800 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 30V 3.4A 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.15W.

Datasheet Request a Quote

In Stock: 7,152

Specifications

14 parameters
Product StatusNot For New Designs
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C3.4A
Rds On (Max) @ Id, Vgs60mOhm @ 3.4A, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs10nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds235pF @ 15V
Power - Max1.15W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
