AO6604

In Stock: 20,770

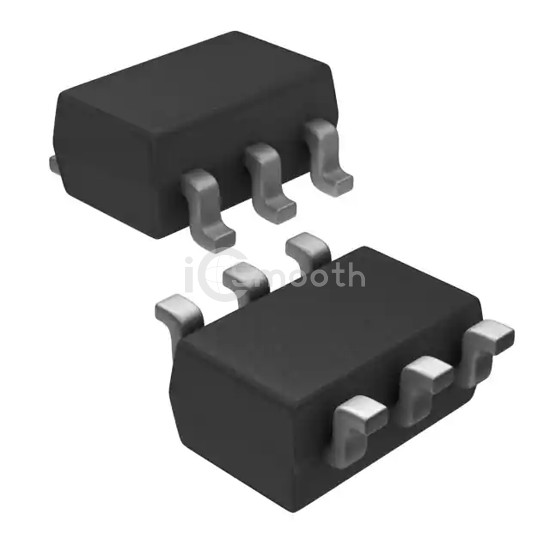

AO6604 - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO6604 Alpha & Omega Semiconductor Inc.
AO6604

Alpha & Omega Semiconductor Inc.

MOSFET N/P-CH 20V 6-TSOP

AO6604 is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N/P-CH 20V 6-TSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-74, SOT-457, power - max 1.1W.

Datasheet Request a Quote

In Stock: 20,770

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel Complementary
FET FeatureLogic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C3.4A, 2.5A
Rds On (Max) @ Id, Vgs65mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds320pF @ 10V
Power - Max1.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74, SOT-457
Supplier Device Package6-TSOP
