Name: AO5804EL
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO5804EL
Availability: InStock

REF: AO5804EL Alpha & Omega Semiconductor Inc.

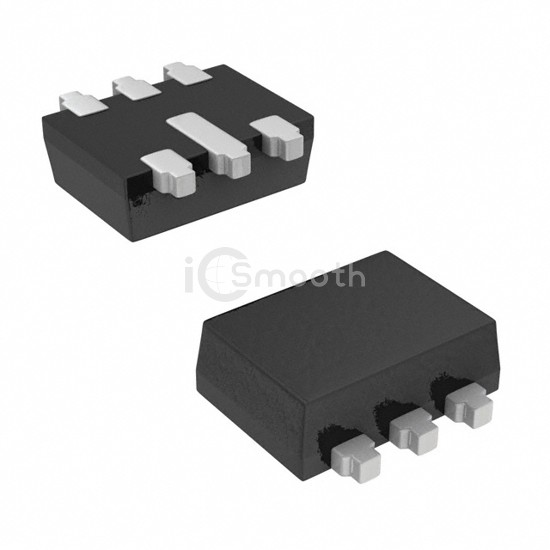

AO5804EL

MOSFET N-CH SC89-3

AO5804EL is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET N-CH SC89-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 280mW.

Request a Quote

In Stock: 5,170

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	500mA
Rds On (Max) @ Id, Vgs	550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	45pF @ 10V
Power - Max	280mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SC-89-6
