AO5804E

In Stock: 3,305

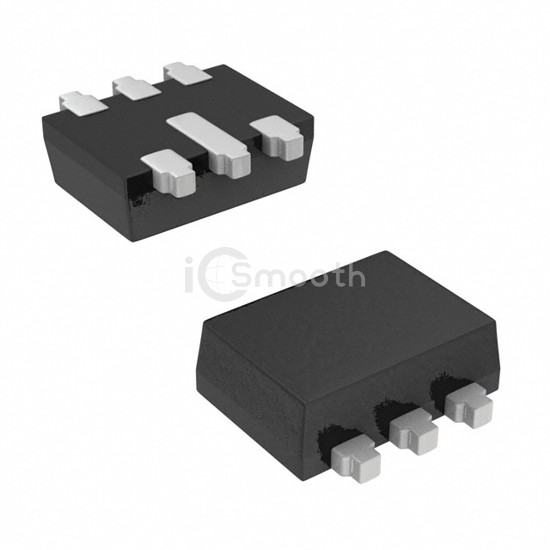

AO5804E - Alpha & Omega Semiconductor Inc. - Transistors - FETs, MOSFETs - Arrays
REF: AO5804E Alpha & Omega Semiconductor Inc.
AO5804E

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 20V 0.5A SC89-6L

AO5804E is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 20V 0.5A SC89-6L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 280mW.

Datasheet Request a Quote

In Stock: 3,305

Specifications

14 parameters
Product StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C500mA
Rds On (Max) @ Id, Vgs550mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds45pF @ 10V
Power - Max280mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-563, SOT-666
Supplier Device PackageSC-89-6
