Name: AO5800E
Brand: Alpha & Omega Semiconductor Inc.
SKU: AO5800E
Availability: InStock

REF: AO5800E Alpha & Omega Semiconductor Inc.

AO5800E

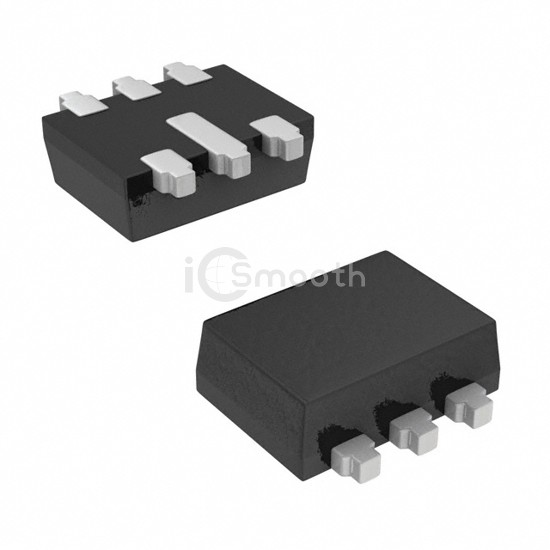

MOSFET 2N-CH 60V 0.4A SC89-6L

AO5800E is a Transistors - FETs, MOSFETs - Arrays manufactured by Alpha & Omega Semiconductor Inc.. MOSFET 2N-CH 60V 0.4A SC89-6L. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 400mW.

Datasheet Request a Quote

In Stock: 6,654

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	1.6Ohm @ 400mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 30V
Power - Max	400mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SC-89-6
