Name: VSKT500-12
Brand: Vishay General Semiconductor - Diodes Division
SKU: VSKT500-12
Price: 474.84 USD
Availability: InStock

REF: VSKT500-12 Vishay General Semiconductor - Diodes Division

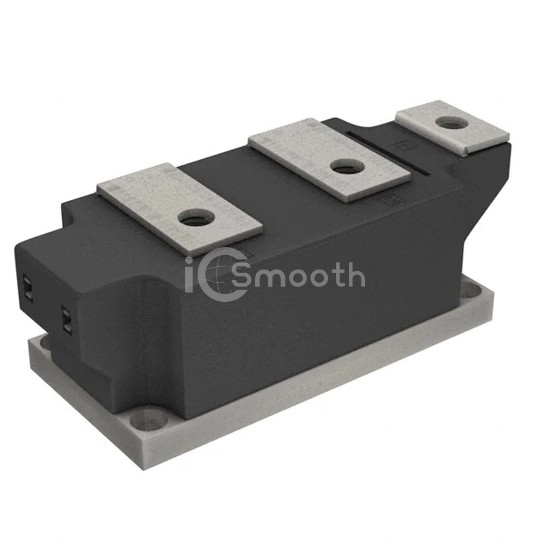

VSKT500-12

Vishay General Semiconductor - Diodes Division

SCR DBL 2SCR 1200V 500A MAGNAPAK

VSKT500-12 is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. SCR DBL 2SCR 1200V 500A MAGNAPAK. Key specifications: mounting type Chassis Mount, package / case SUPER MAGN-A-PAK.

Datasheet Request a Quote

In Stock: 3,715

Specifications

13 parameters

Product Status	Obsolete
Structure	Series Connection - All SCRs
Number of SCRs, Diodes	2 SCRs
Voltage - Off State	1.2 kV
Current - On State (It (AV)) (Max)	500 A
Current - On State (It (RMS)) (Max)	785 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	17800A, 18700A
Current - Hold (Ih) (Max)	500 mA
Operating Temperature	-
Mounting Type	Chassis Mount
Package / Case	SUPER MAGN-A-PAK
