Name: VS-VSKH570-16PBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-VSKH570-16PBF
Price: 297.03 USD
Availability: InStock

REF: VS-VSKH570-16PBF Vishay General Semiconductor - Diodes Division

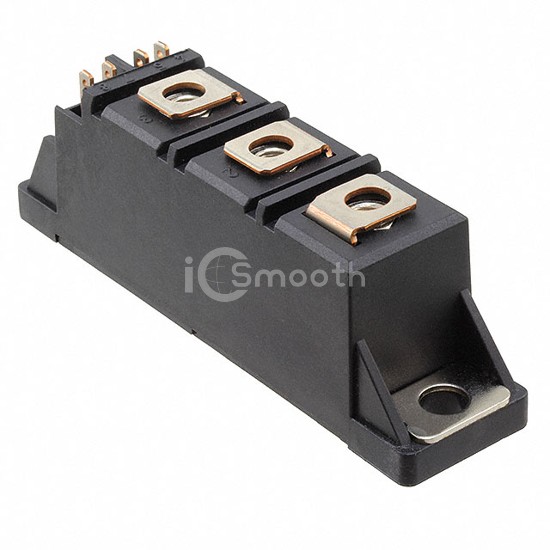

VS-VSKH570-16PBF

Vishay General Semiconductor - Diodes Division

SCR MODULE 1.6KV 894A MAGNAPAK

VS-VSKH570-16PBF is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. SCR MODULE 1.6KV 894A MAGNAPAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 135°C (TJ), package / case SUPER MAGN-A-PAK.

Request a Quote

In Stock: 2,353

Specifications

13 parameters

Product Status	Active
Structure	Series Connection - SCR/Diode
Number of SCRs, Diodes	1 SCR, 1 Diode
Voltage - Off State	1.6 kV
Current - On State (It (AV)) (Max)	570 A
Current - On State (It (RMS)) (Max)	894 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	18000A, 18800A
Current - Hold (Ih) (Max)	500 mA
Operating Temperature	-40°C ~ 135°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SUPER MAGN-A-PAK
