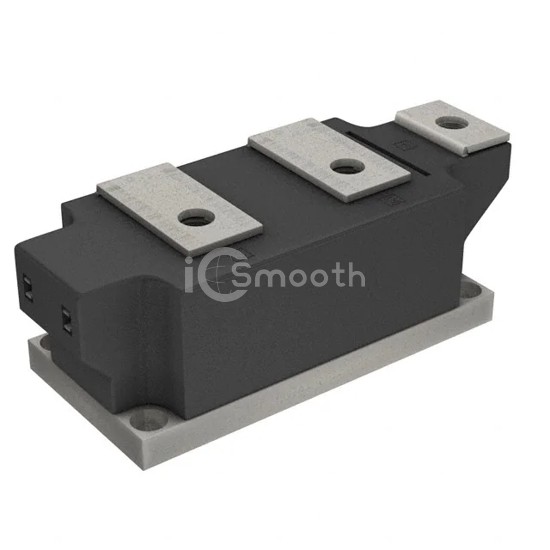

Name: VSKT430-18
Brand: Vishay General Semiconductor - Diodes Division
SKU: VSKT430-18
Price: 450.70 USD
Availability: InStock

REF: VSKT430-18 Vishay General Semiconductor - Diodes Division

VSKT430-18

Vishay General Semiconductor - Diodes Division

SCR DBL 2SCR 1800V 430A MAGNAPAK

VSKT430-18 is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. SCR DBL 2SCR 1800V 430A MAGNAPAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case SUPER MAGN-A-PAK.

Datasheet Request a Quote

In Stock: 4,357

Specifications

13 parameters

Product Status	Obsolete
Structure	Series Connection - All SCRs
Number of SCRs, Diodes	2 SCRs
Voltage - Off State	1.8 kV
Current - On State (It (AV)) (Max)	430 A
Current - On State (It (RMS)) (Max)	675 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	-
Current - Non Rep. Surge 50, 60Hz (Itsm)	15700A, 16400A
Current - Hold (Ih) (Max)	500 mA
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SUPER MAGN-A-PAK
