Name: VS-VSKT570-18PBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-VSKT570-18PBF
Price: 411.72 USD
Availability: InStock

REF: VS-VSKT570-18PBF Vishay General Semiconductor - Diodes Division

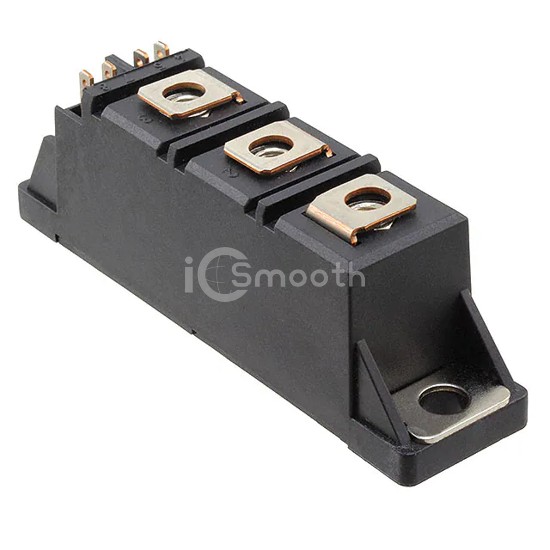

VS-VSKT570-18PBF

Vishay General Semiconductor - Diodes Division

MODULE THY 570A SMAGN-A-PAK

VS-VSKT570-18PBF is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MODULE THY 570A SMAGN-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 135°C (TJ), package / case 3-SuperMAGN-A-PAK™.

Datasheet Request a Quote

In Stock: 6,081

Specifications

13 parameters

Product Status	Active
Structure	Series Connection - All SCRs
Number of SCRs, Diodes	2 SCRs
Voltage - Off State	1.8 kV
Current - On State (It (AV)) (Max)	570 A
Current - On State (It (RMS)) (Max)	895 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	17800A, 18700A
Current - Hold (Ih) (Max)	500 mA
Operating Temperature	-40°C ~ 135°C (TJ)
Mounting Type	Chassis Mount
Package / Case	3-SuperMAGN-A-PAK™
