Name: VS-VSKLF200-12HJP
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-VSKLF200-12HJP
Availability: InStock

REF: VS-VSKLF200-12HJP Vishay General Semiconductor - Diodes Division

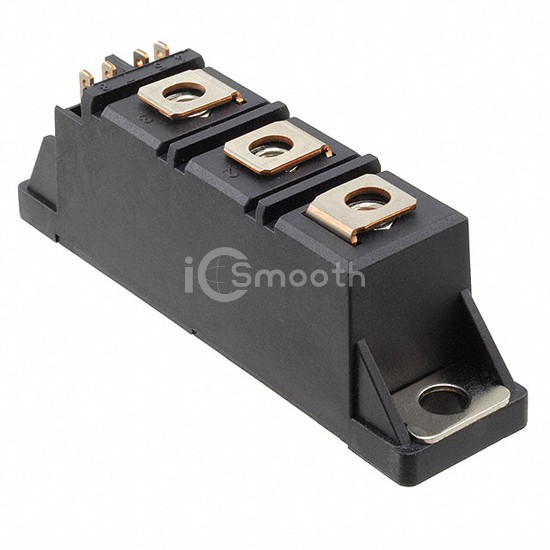

VS-VSKLF200-12HJP

Vishay General Semiconductor - Diodes Division

MOD DIODE 1200V MAGN-A-PAK

VS-VSKLF200-12HJP is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MOD DIODE 1200V MAGN-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case MAGN-A-PAK (2).

Datasheet Request a Quote

In Stock: 6,359

Specifications

13 parameters

Product Status	Active
Structure	Series Connection - SCR/Diode
Number of SCRs, Diodes	1 SCR, 1 Diode
Voltage - Off State	1.2 kV
Current - On State (It (AV)) (Max)	200 A
Current - On State (It (RMS)) (Max)	444 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	7600A, 8000A
Current - Hold (Ih) (Max)	600 mA
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Chassis Mount
Package / Case	MAGN-A-PAK (2)
