Name: VS-VSKH500-16PBF
Brand: Vishay General Semiconductor - Diodes Division
SKU: VS-VSKH500-16PBF
Price: 600.96 USD
Availability: InStock

REF: VS-VSKH500-16PBF Vishay General Semiconductor - Diodes Division

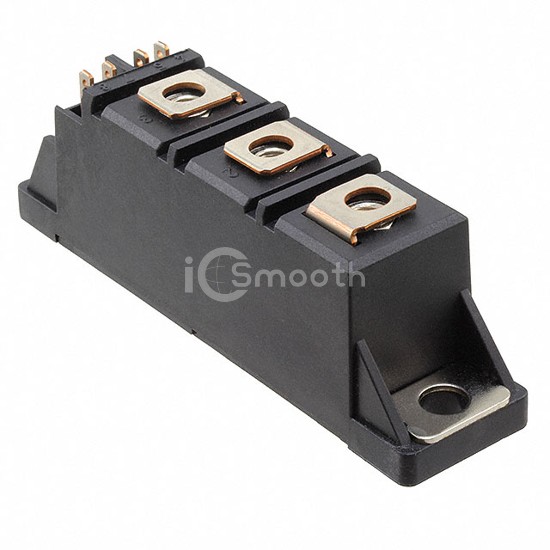

VS-VSKH500-16PBF

Vishay General Semiconductor - Diodes Division

MODULE DIODE 500A SMAGN-A-PAK

VS-VSKH500-16PBF is a Thyristors - SCRs - Modules manufactured by Vishay General Semiconductor - Diodes Division. MODULE DIODE 500A SMAGN-A-PAK. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 130°C (TJ), package / case 3-SuperMAGN-A-PAK™.

Datasheet Request a Quote

In Stock: 9,361

Specifications

13 parameters

Product Status	Active
Structure	Series Connection - SCR/Diode
Number of SCRs, Diodes	1 SCR, 1 Diode
Voltage - Off State	1.6 kV
Current - On State (It (AV)) (Max)	500 A
Current - On State (It (RMS)) (Max)	785 A
Voltage - Gate Trigger (Vgt) (Max)	3 V

Current - Gate Trigger (Igt) (Max)	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	17800A, 18700A
Current - Hold (Ih) (Max)	500 mA
Operating Temperature	-40°C ~ 130°C (TJ)
Mounting Type	Chassis Mount
Package / Case	3-SuperMAGN-A-PAK™
