SBB500AA160

In Stock: 8,453

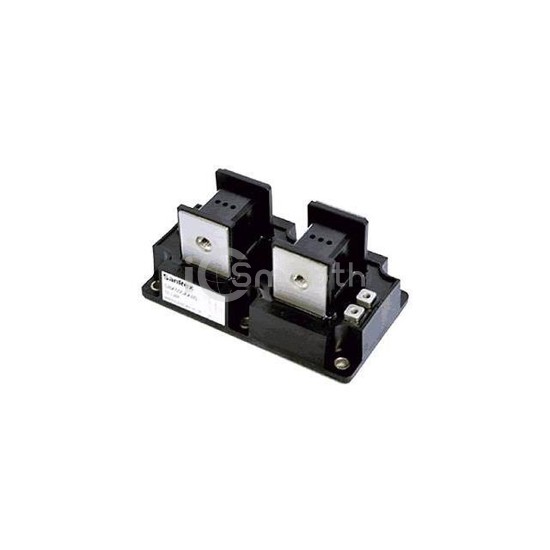

SBB500AA160 - SanRex Corporation - Thyristors - SCRs - Modules
REF: SBB500AA160 SanRex Corporation
SBB500AA160

SanRex Corporation

THYRISTOR MODULE 1600V 500A

SBB500AA160 is a Thyristors - SCRs - Modules manufactured by SanRex Corporation. THYRISTOR MODULE 1600V 500A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 8,453

Specifications

13 parameters
Product StatusActive
StructureIndependent - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)500 A
Current - On State (It (RMS)) (Max)785 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)9100A, 10000A
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
