PWB200AA40

In Stock: 3,048

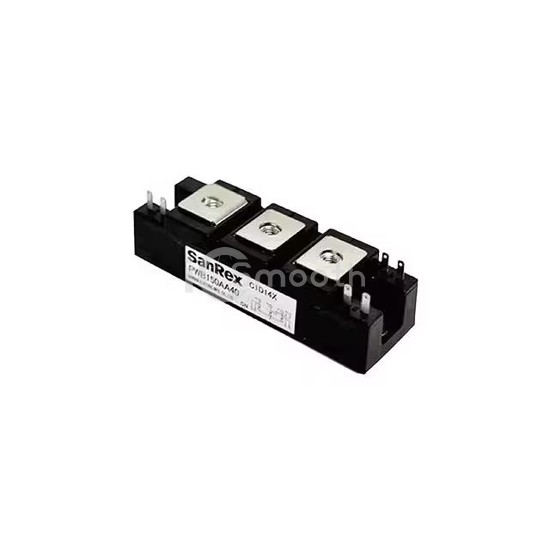

PWB200AA40 - SanRex Corporation - Thyristors - SCRs - Modules
REF: PWB200AA40 SanRex Corporation
PWB200AA40

SanRex Corporation

THYRISTOR MODULE 400V 200A

PWB200AA40 is a Thyristors - SCRs - Modules manufactured by SanRex Corporation. THYRISTOR MODULE 400V 200A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 3,048

Specifications

13 parameters
Product StatusActive
StructureBridge, 3-Phase - All SCRs
Number of SCRs, Diodes3 SCRs
Voltage - Off State400 V
Current - On State (It (AV)) (Max)200 A
Current - On State (It (RMS)) (Max)314 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)5400A, 6000A
Current - Hold (Ih) (Max)70 mA
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
