PK90FG160

In Stock: 7,877

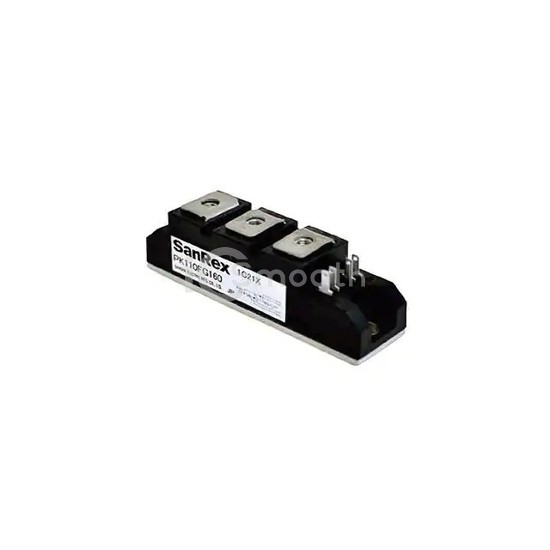

PK90FG160 - SanRex Corporation - Thyristors - SCRs - Modules
REF: PK90FG160 SanRex Corporation
PK90FG160

SanRex Corporation

THYRISTOR MODULE 1600V 90A

PK90FG160 is a Thyristors - SCRs - Modules manufactured by SanRex Corporation. THYRISTOR MODULE 1600V 90A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 7,877

Tiered Pricing USD
1+ $44.7400 —
10+ $33.6040 -25%
100+ $31.0875 -31% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)90 A
Current - On State (It (RMS)) (Max)140 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2100A, 2300A
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
