PK40FG160

In Stock: 1,679

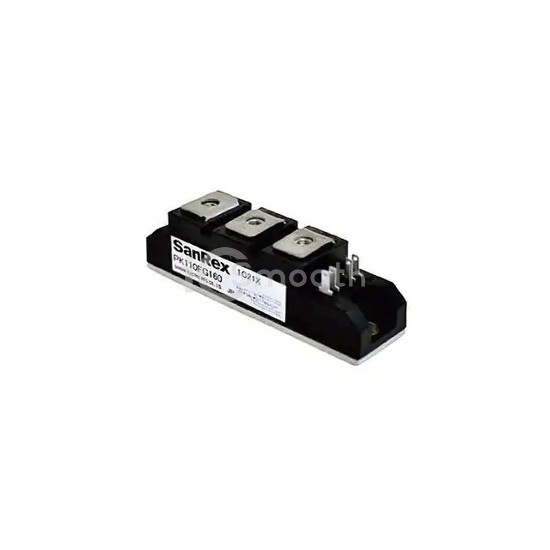

PK40FG160 - SanRex Corporation - Thyristors - SCRs - Modules
REF: PK40FG160 SanRex Corporation
PK40FG160

SanRex Corporation

THYRISTOR MODULE 1600V 40A

PK40FG160 is a Thyristors - SCRs - Modules manufactured by SanRex Corporation. THYRISTOR MODULE 1600V 40A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 1,679

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)40 A
Current - On State (It (RMS)) (Max)62 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)870A, 950A
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
