PD200FG160

In Stock: 5,956
PD200FG160 - SanRex Corporation - Thyristors - SCRs - Modules
REF: PD200FG160 SanRex Corporation

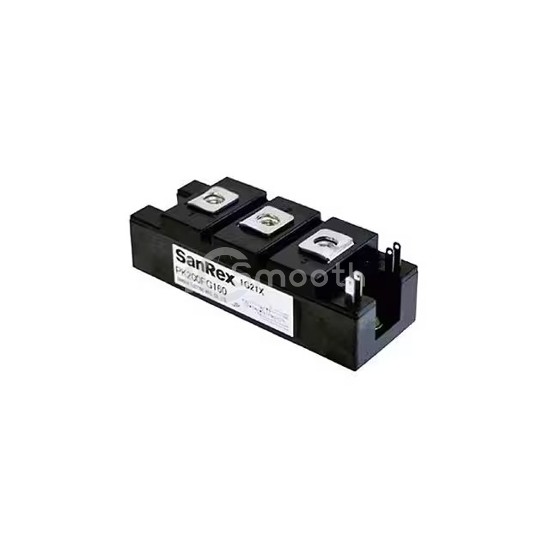

PD200FG160

SanRex Corporation

THYRISTOR MODULE 800V 200A

PD200FG160 is a Thyristors - SCRs - Modules manufactured by SanRex Corporation. THYRISTOR MODULE 800V 200A. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 5,956

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)200 A
Current - On State (It (RMS)) (Max)314 A
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)6000A, 6500A
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
