NTE5714

In Stock: 26

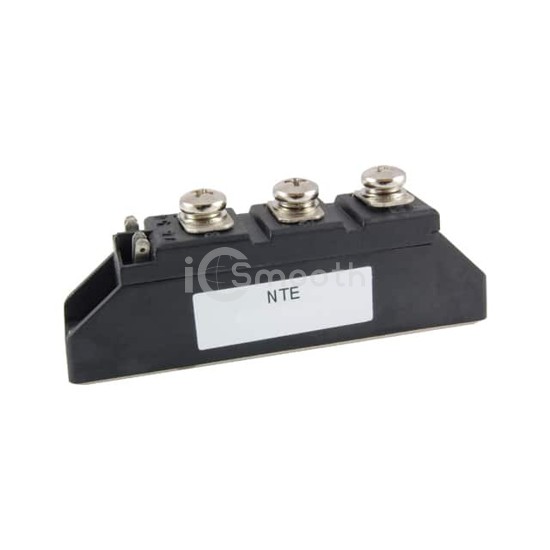

NTE5714 - NTE Electronics, Inc - Thyristors - SCRs - Modules
REF: NTE5714 NTE Electronics, Inc
NTE5714

NTE Electronics, Inc

SCR 1600V 65A MODULE

NTE5714 is a Thyristors - SCRs - Modules manufactured by NTE Electronics, Inc. SCR 1600V 65A MODULE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 26

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)70 A
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1600A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
