NTE5712

In Stock: 16

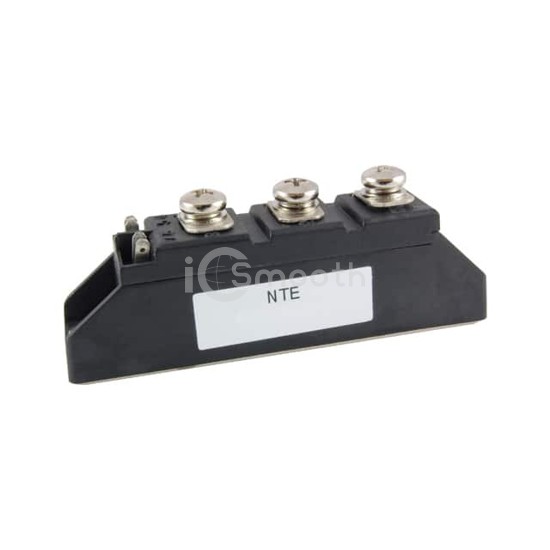

NTE5712 - NTE Electronics, Inc - Thyristors - SCRs - Modules
REF: NTE5712 NTE Electronics, Inc
NTE5712

NTE Electronics, Inc

SCR 1200V 120A MODULE

NTE5712 is a Thyristors - SCRs - Modules manufactured by NTE Electronics, Inc. SCR 1200V 120A MODULE. Key specifications: mounting type Chassis Mount, package / case Module.

Datasheet Request a Quote

In Stock: 16

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)55 A
Current - On State (It (RMS)) (Max)86 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1500A @ 60Hz
Current - Hold (Ih) (Max)150 mA
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseModule
