NTE5701

In Stock: 17

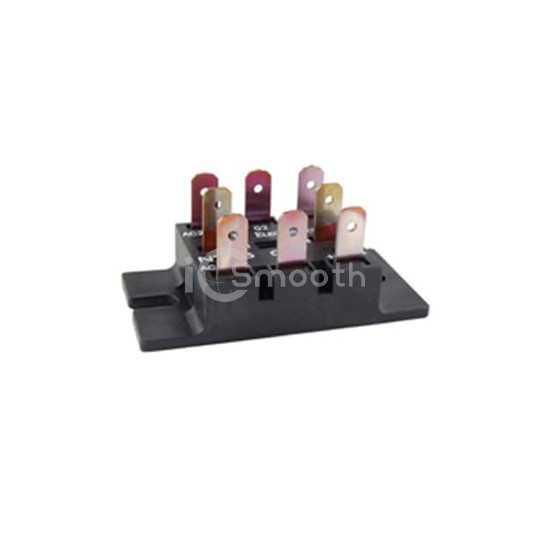

NTE5701 - NTE Electronics, Inc - Thyristors - SCRs - Modules
REF: NTE5701 NTE Electronics, Inc
NTE5701

NTE Electronics, Inc

INDUSTRIAL POWER MODULE

NTE5701 is a Thyristors - SCRs - Modules manufactured by NTE Electronics, Inc. INDUSTRIAL POWER MODULE. Key specifications: operating temperature -40°C ~ 125°C (TJ), package / case Module.

Datasheet Request a Quote

In Stock: 17

Specifications

13 parameters
Product StatusActive
StructureBridge, Single Phase - SCRs/Diodes (Layout 2)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)12.5 A
Current - On State (It (RMS)) (Max)16.5 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)357A, 375A
Current - Hold (Ih) (Max)100 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting Type-
Package / CaseModule
