MSDT100-16

In Stock: 1,853

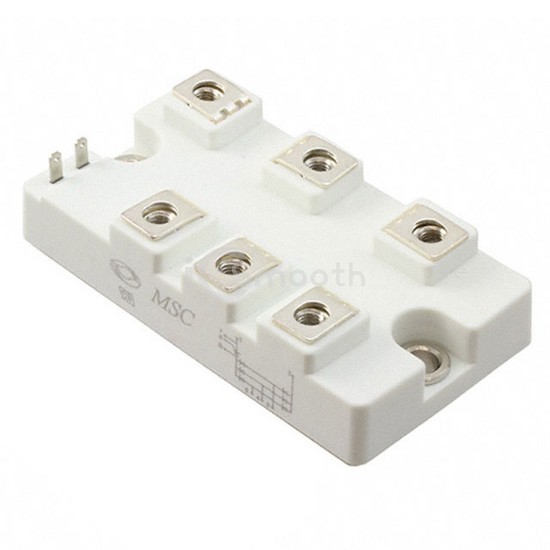

MSDT100-16 - Microsemi Corporation - Thyristors - SCRs - Modules
REF: MSDT100-16 Microsemi Corporation
MSDT100-16

Microsemi Corporation

PWR MOD THYRISTOR 1600V 100V SM4

MSDT100-16 is a Thyristors - SCRs - Modules manufactured by Microsemi Corporation. PWR MOD THYRISTOR 1600V 100V SM4. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case M4 Module.

Request a Quote

In Stock: 1,853

Specifications

13 parameters
Product StatusObsolete
StructureBridge, 3-Phase - SCRs/Diodes
Number of SCRs, Diodes1 SCR, 6 Diodes
Voltage - Off State1.6 kV
Current - On State (It (AV)) (Max)100 A
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1200A @ 50Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseM4 Module
