VHF15-14IO5

In Stock: 3,697

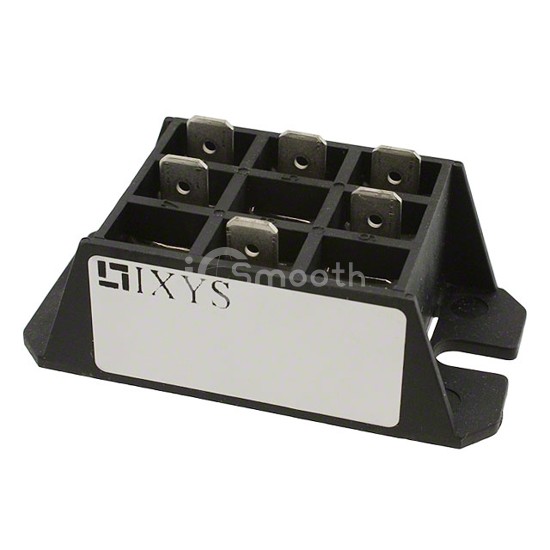

VHF15-14IO5 - IXYS - Thyristors - SCRs - Modules
REF: VHF15-14IO5 IXYS
VHF15-14IO5

IXYS

BRIDGE RECTIF SGLE PHASE W/DIODE

VHF15-14IO5 is a Thyristors - SCRs - Modules manufactured by IXYS. BRIDGE RECTIF SGLE PHASE W/DIODE. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 125°C (TJ), package / case PWS-E1.

Datasheet Request a Quote

In Stock: 3,697

Specifications

13 parameters
Product StatusObsolete
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State1.4 kV
Current - On State (It (AV)) (Max)-
Current - On State (It (RMS)) (Max)15 A
Voltage - Gate Trigger (Vgt) (Max)1 V
Current - Gate Trigger (Igt) (Max)65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)190A, 210A
Current - Hold (Ih) (Max)100 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CasePWS-E1
