MCNA40PD2200TB

In Stock: 6,368

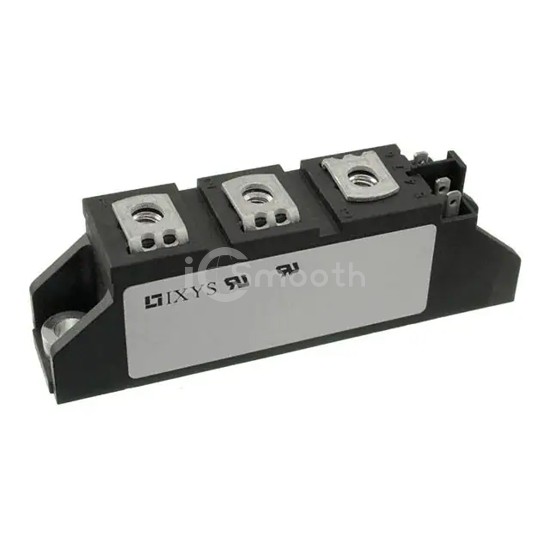

MCNA40PD2200TB - IXYS - Thyristors - SCRs - Modules
REF: MCNA40PD2200TB IXYS
MCNA40PD2200TB

IXYS

BIPOLAR MODULE - THYRISTOR TO-2

MCNA40PD2200TB is a Thyristors - SCRs - Modules manufactured by IXYS. BIPOLAR MODULE - THYRISTOR TO-2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case TO-240AA.

Request a Quote

In Stock: 6,368

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)40 A
Current - On State (It (RMS)) (Max)63 A
Voltage - Gate Trigger (Vgt) (Max)1.4 V
Current - Gate Trigger (Igt) (Max)70 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)500A, 540A
Current - Hold (Ih) (Max)100 mA
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeChassis Mount
Package / CaseTO-240AA
