MCNA180PD2200YB

In Stock: 6,910

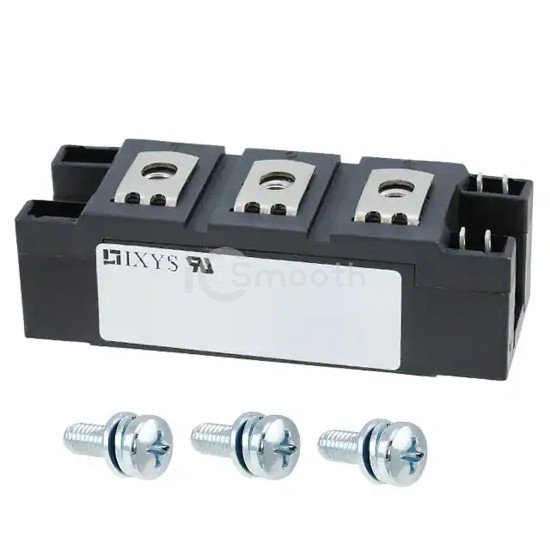

MCNA180PD2200YB - IXYS - Thyristors - SCRs - Modules
REF: MCNA180PD2200YB IXYS
MCNA180PD2200YB

IXYS

BIPOLAR MODULE - THYRISTOR Y4-M

MCNA180PD2200YB is a Thyristors - SCRs - Modules manufactured by IXYS. BIPOLAR MODULE - THYRISTOR Y4-M. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case Y4-M6.

Request a Quote

In Stock: 6,910

Tiered Pricing USD
1+ $99.3300 —
12+ $82.0075 -17% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)180 A
Current - On State (It (RMS)) (Max)280 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)5400A, 5830A
Current - Hold (Ih) (Max)200 mA
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeChassis Mount
Package / CaseY4-M6
