MCNA120P2200TA

In Stock: 6,462

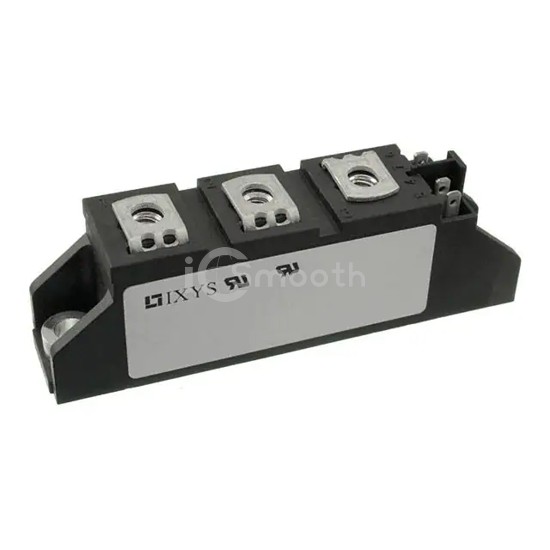

MCNA120P2200TA - IXYS - Thyristors - SCRs - Modules
REF: MCNA120P2200TA IXYS
MCNA120P2200TA

IXYS

MOD THYRISTOR TRI 22KV TO-240

MCNA120P2200TA is a Thyristors - SCRs - Modules manufactured by IXYS. MOD THYRISTOR TRI 22KV TO-240. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case TO-240AA.

Datasheet Request a Quote

In Stock: 6,462

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)120 A
Current - On State (It (RMS)) (Max)190 A
Voltage - Gate Trigger (Vgt) (Max)1.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2200A, 2380A
Current - Hold (Ih) (Max)150 mA
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeChassis Mount
Package / CaseTO-240AA
