MCD224-20IO1

In Stock: 6,900

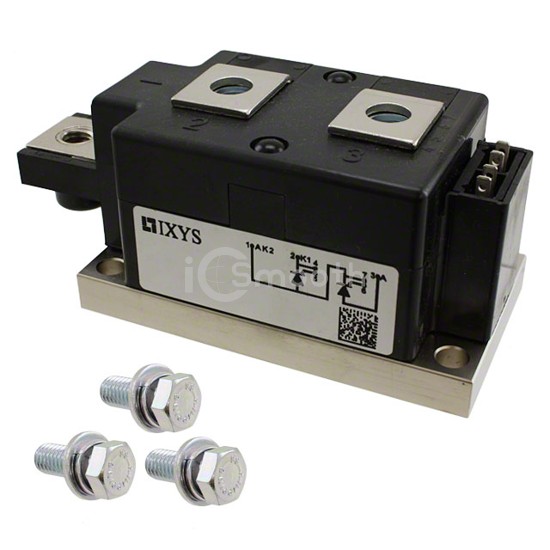

MCD224-20IO1 - IXYS - Thyristors - SCRs - Modules
REF: MCD224-20IO1 IXYS
MCD224-20IO1

IXYS

MOD THYRISTOR/DIODE 2000V Y1-CU

MCD224-20IO1 is a Thyristors - SCRs - Modules manufactured by IXYS. MOD THYRISTOR/DIODE 2000V Y1-CU. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 140°C (TJ), package / case Y1-CU.

Datasheet Request a Quote

In Stock: 6,900

Tiered Pricing USD
1+ $191.3000 —
12+ $177.8100 -7% BEST

Specifications

13 parameters
Product StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2 kV
Current - On State (It (AV)) (Max)240 A
Current - On State (It (RMS)) (Max)400 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)8000A, 8500A
Current - Hold (Ih) (Max)200 mA
Operating Temperature-40°C ~ 140°C (TJ)
Mounting TypeChassis Mount
Package / CaseY1-CU
