WCDSC006XUMA1

In Stock: 5,604

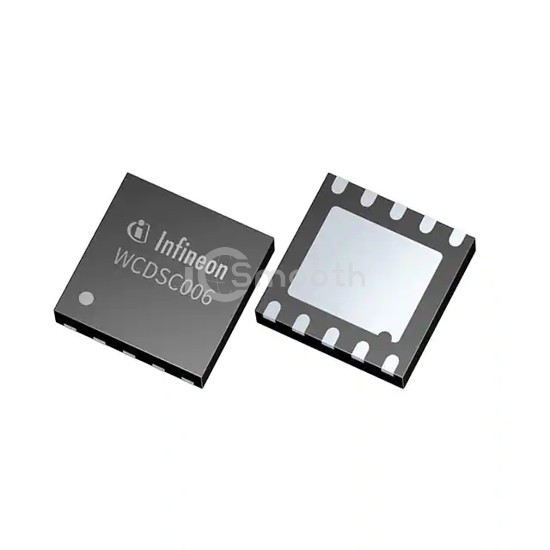

WCDSC006XUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: WCDSC006XUMA1 Infineon Technologies
WCDSC006XUMA1

Infineon Technologies

DRIVER

WCDSC006XUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.5V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,604

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge
ApplicationsGeneral Purpose
InterfaceLogic, PWM
Load TypeInductive, Capacitive, Resistive
TechnologyPower MOSFET
Rds On (Typ)800mOhm LS (Max), 2Ohm HS (Max)
Current - Output / Channel2A
Current - Peak Output2A
Voltage - Supply4.75V ~ 5.5V
Voltage - Load4.75V ~ 5.5V
Operating Temperature-40°C ~ 125°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device PackagePG-WSON-10
