TDA21201-S7

In Stock: 358

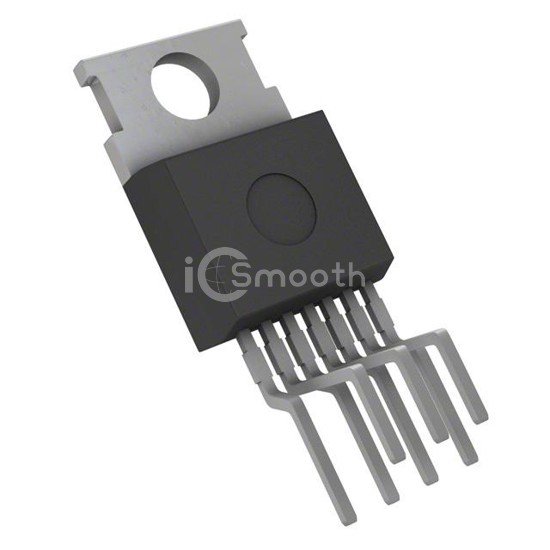

TDA21201-S7 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TDA21201-S7 Infineon Technologies
TDA21201-S7

Infineon Technologies

SWITCH MOSFET/DRIVER TO220-7-230

TDA21201-S7 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. SWITCH MOSFET/DRIVER TO220-7-230. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 125°C (TJ), voltage - supply 9V ~ 15V, package / case TO-220-7.

Datasheet Request a Quote

In Stock: 358

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)4.8mOhm LS, 13.3mOhm HS
Current - Output / Channel30A
Current - Peak Output-
Voltage - Supply9V ~ 15V
Voltage - Load9V ~ 15V
Operating Temperature-25°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature, Shoot-Through, UVLO
Mounting TypeThrough Hole
Package / CaseTO-220-7
Supplier Device PackageP-TO220-7-230
