TLE94108ESXUMA1

In Stock: 5,425

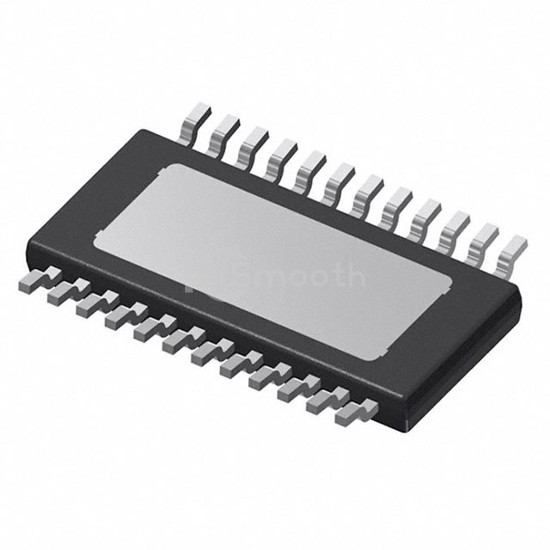

TLE94108ESXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE94108ESXUMA1 Infineon Technologies
TLE94108ESXUMA1

Infineon Technologies

DC_MOTOR_CONTROL PG-TSDSO-24

TLE94108ESXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. DC_MOTOR_CONTROL PG-TSDSO-24. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 5,425

Tiered Pricing USD
1+ $2.7400 —
10+ $2.0410 -26%
25+ $1.8676 -32%
100+ $1.6763 -39%
250+ $1.5851 -42%
500+ $1.5301 -44%
1,000+ $1.4849 -46% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (8)
ApplicationsDC Motors, General Purpose
InterfaceLogic, PWM, SPI
Load TypeInductive, Resistive
Technology-
Rds On (Typ)1.3Ohm LS, 1.3Ohm HS
Current - Output / Channel-
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load3V ~ 5.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesCharge Pump
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit
Mounting TypeSurface Mount
Package / Case24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-24
