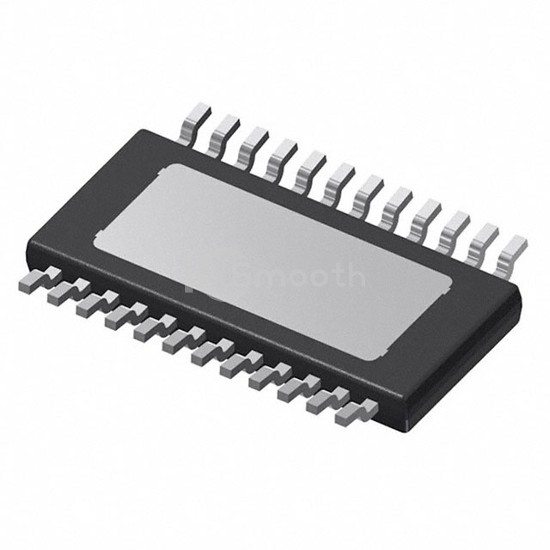

Name: TLE94112ESXUMA1
Brand: Infineon Technologies
SKU: TLE94112ESXUMA1
Price: 3.46 USD
Availability: InStock

REF: TLE94112ESXUMA1 Infineon Technologies

TLE94112ESXUMA1

Infineon Technologies

DC_MOTOR_CONTROL PG-TSDSO-24

TLE94112ESXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. DC_MOTOR_CONTROL PG-TSDSO-24. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8,740

Tiered Pricing USD

1+ $3.4600 —

10+ $2.6030 -25%

25+ $2.3888 -31%

100+ $2.1531 -38%

250+ $2.0406 -41%

500+ $1.9728 -43%

1,000+ $1.9170 -45% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (12)
Applications	DC Motors, General Purpose
Interface	Logic, PWM, SPI
Load Type	Inductive, Capacitive, Resistive
Technology	-
Rds On (Typ)	1.3Ohm LS, 1.3Ohm HS
Current - Output / Channel	-
Current - Peak Output	-

Voltage - Supply	3V ~ 5.5V
Voltage - Load	3V ~ 5.5V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Charge Pump
Fault Protection	Current Limiting, Over Current, Over Temperature, Short Circuit
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	PG-TSDSO-24
