TLE94106ELXUMA1

In Stock: 6,527

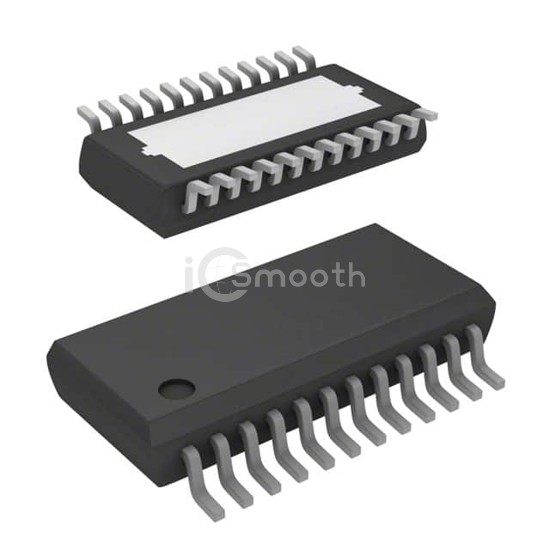

TLE94106ELXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE94106ELXUMA1 Infineon Technologies
TLE94106ELXUMA1

Infineon Technologies

IC DRIVER HALF-BRIDGE 24SSOP

TLE94106ELXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER HALF-BRIDGE 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 6,527

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (6)
ApplicationsDC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)850mOhm LS, 850mOhm HS
Current - Output / Channel500mA
Current - Peak Output2A
Voltage - Supply3V ~ 5.5V
Voltage - Load5.5V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOver Temperature, Over Voltage, UVLO
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-SSOP-24
