TLE94104EPXUMA1

In Stock: 7,318

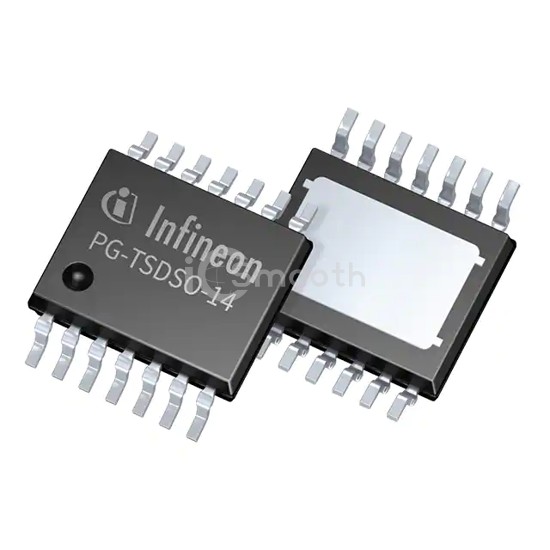

TLE94104EPXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE94104EPXUMA1 Infineon Technologies
TLE94104EPXUMA1

Infineon Technologies

BODY BRIDGES

TLE94104EPXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BODY BRIDGES. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 7,318

Tiered Pricing USD
1+ $1.8300 —
10+ $1.3440 -27%
25+ $1.2232 -33%
100+ $1.0899 -40%
250+ $1.0264 -44%
500+ $0.9881 -46%
1,000+ $0.9566 -48% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (4)
ApplicationsDC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)825mOhm LS, 825mOhm HS
Current - Output / Channel2A
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load5.5V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-14
