TLE94103EPXUMA1

In Stock: 2,765

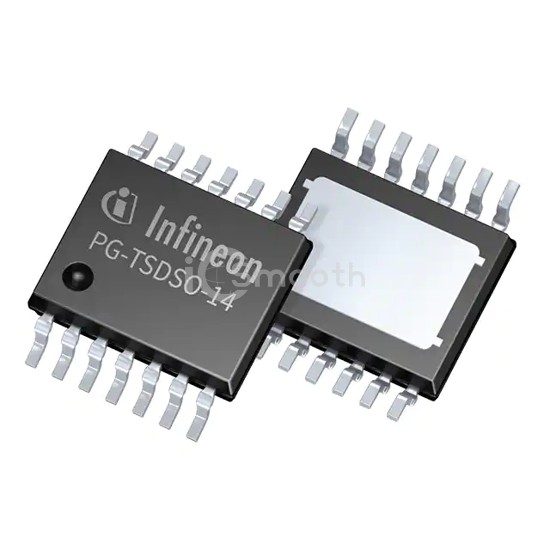

TLE94103EPXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE94103EPXUMA1 Infineon Technologies
TLE94103EPXUMA1

Infineon Technologies

BODY BRIDGES

TLE94103EPXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BODY BRIDGES. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 2,765

Tiered Pricing USD
1+ $1.6900 —
10+ $1.2390 -27%
25+ $1.1260 -33%
100+ $1.0018 -41%
250+ $0.9427 -44%
500+ $0.9070 -46%
1,000+ $0.8777 -48% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)825mOhm LS, 825mOhm HS
Current - Output / Channel2A
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load5.5V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-14
