TLE94003EPXUMA1

In Stock: 1,554

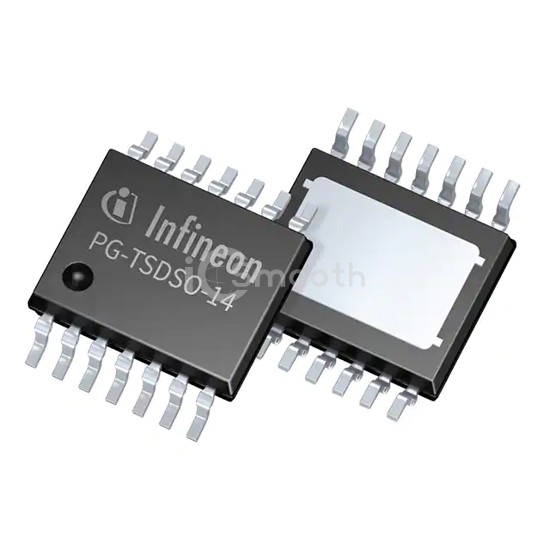

TLE94003EPXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE94003EPXUMA1 Infineon Technologies
TLE94003EPXUMA1

Infineon Technologies

BODY BRIDGES

TLE94003EPXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. BODY BRIDGES. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 1,554

Tiered Pricing USD
1+ $1.7100 —
10+ $1.2530 -27%
25+ $1.1392 -33%
100+ $1.0138 -41%
250+ $0.9541 -44%
500+ $0.9181 -46%
1,000+ $0.8884 -48% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceDirect
Load TypeInductive
TechnologyDMOS
Rds On (Typ)825mOhm LS, 825mOhm HS
Current - Output / Channel2A
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load5.5V ~ 20V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-TSDSO-14
