TLE9202EDXUMA1

In Stock: 3,567

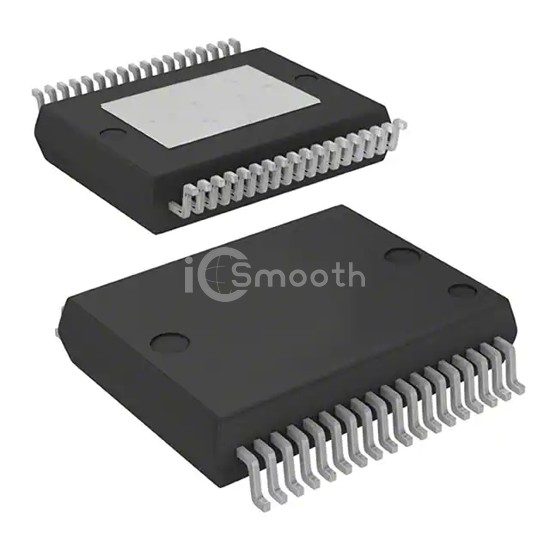

TLE9202EDXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE9202EDXUMA1 Infineon Technologies
TLE9202EDXUMA1

Infineon Technologies

IC DRIVER H-BRIDGE DSO-36

TLE9202EDXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER H-BRIDGE DSO-36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2.9V ~ 5.5V, package / case 36-BFSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,567

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)100mOhm LS, 100mOhm HS
Current - Output / Channel6A
Current - Peak Output-
Voltage - Supply2.9V ~ 5.5V
Voltage - Load5V ~ 28V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case36-BFSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device PackagePG-DSO-36-72
