TLE9201SGAUMA1

In Stock: 9,511

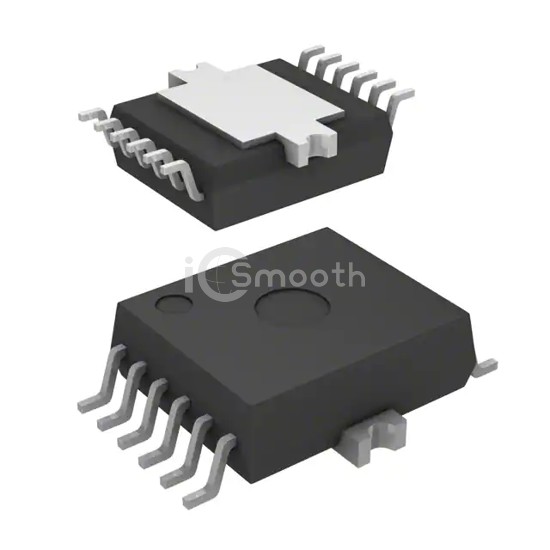

TLE9201SGAUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE9201SGAUMA1 Infineon Technologies
TLE9201SGAUMA1

Infineon Technologies

IC DRIVER 12DSO

TLE9201SGAUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC DRIVER 12DSO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 5V ~ 28V, package / case 12-BSOP (0.295", 7.50mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,511

Tiered Pricing USD
1+ $3.8400 —
10+ $2.8960 -25%
25+ $2.6612 -31%
100+ $2.4027 -37%
250+ $2.2794 -41%
500+ $2.2051 -43% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, General Purpose
InterfacePWM, SPI
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)100mOhm LS, 100mOhm HS
Current - Output / Channel6A
Current - Peak Output-
Voltage - Supply5V ~ 28V
Voltage - Load5V ~ 28V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOpen Load Detect, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case12-BSOP (0.295", 7.50mm Width) Exposed Pad
Supplier Device PackagePG-DSO-12-17
