TLE84106ELXUMA1

In Stock: 8,674

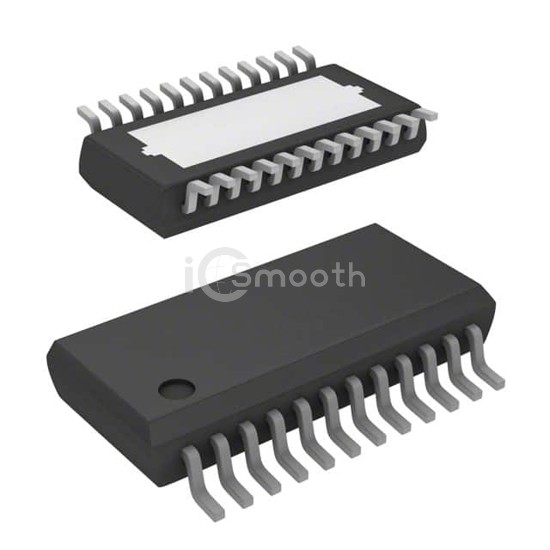

TLE84106ELXUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TLE84106ELXUMA1 Infineon Technologies
TLE84106ELXUMA1

Infineon Technologies

IC HALF-BRIDGE DRVR 6CH 24SSOP

TLE84106ELXUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC HALF-BRIDGE DRVR 6CH 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 3V ~ 5.5V, package / case 24-LSSOP (0.154", 3.90mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 8,674

Specifications

17 parameters
Product StatusNot For New Designs
Output ConfigurationHalf Bridge (6)
ApplicationsDC Motors, General Purpose
InterfaceSPI
Load TypeInductive
TechnologyDMOS
Rds On (Typ)800mOhm LS, 800mOhm HS
Current - Output / Channel-
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load7V ~ 18V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOpen Load Detect, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case24-LSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device PackagePG-SSOP-24-4
