TDA21242AUMA1

In Stock: 3,400

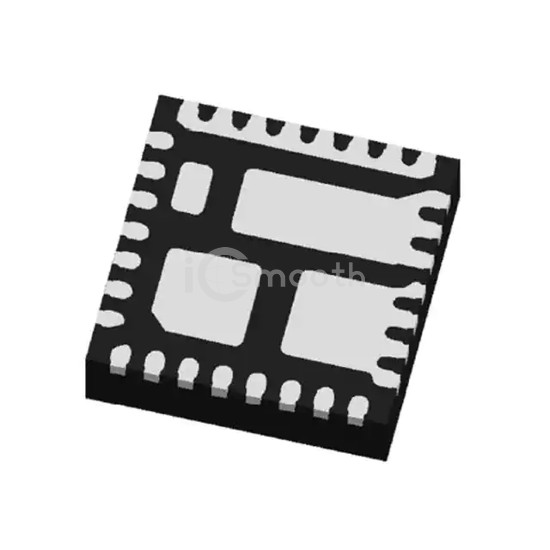

TDA21242AUMA1 - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: TDA21242AUMA1 Infineon Technologies
TDA21242AUMA1

Infineon Technologies

IC POWERSTAGE DRIVER 30IQFN

TDA21242AUMA1 is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC POWERSTAGE DRIVER 30IQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 7V, package / case 30-PowerTFQFN.

Datasheet Request a Quote

In Stock: 3,400

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge
ApplicationsSynchronous Buck Converters
InterfacePWM
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)-
Current - Output / Channel25A
Current - Peak Output-
Voltage - Supply4.5V ~ 7V
Voltage - Load4.5V ~ 16V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionOver Temperature, Shoot-Through, UVLO
Mounting TypeSurface Mount
Package / Case30-PowerTFQFN
Supplier Device PackagePG-IQFN-30-2
