IRSM836-015MA

In Stock: 736

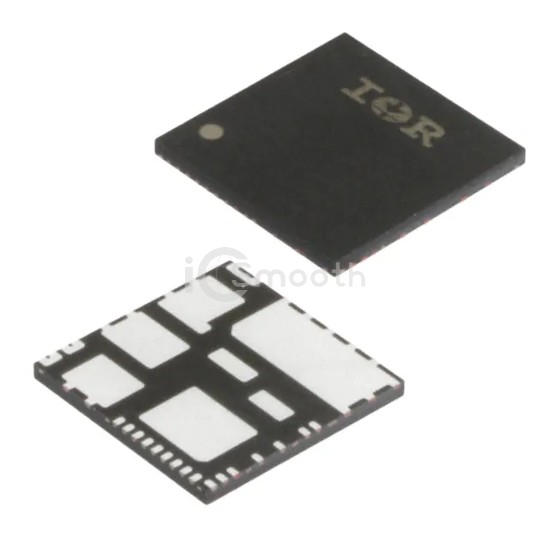

IRSM836-015MA - Infineon Technologies - PMIC - Full, Half-Bridge Drivers
REF: IRSM836-015MA Infineon Technologies
IRSM836-015MA

Infineon Technologies

IC MOTOR DRIVER 500V QFN

IRSM836-015MA is a PMIC - Full, Half-Bridge Drivers manufactured by Infineon Technologies. IC MOTOR DRIVER 500V QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 13.5V ~ 16.5V, package / case 36-PowerVQFN.

Datasheet Request a Quote

In Stock: 736

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsAC Motors
InterfaceLogic
Load TypeInductive
TechnologyUMOS
Rds On (Typ)4.8Ohm
Current - Output / Channel1A
Current - Peak Output7A
Voltage - Supply13.5V ~ 16.5V
Voltage - Load400V (Max)
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionUVLO
Mounting TypeSurface Mount
Package / Case36-PowerVQFN
Supplier Device Package36-PQFN (12x12)
